Scissor Lift

Discover the exceptional quality of our Scissor Lift, presented by a trusted service provider, supplier, and trader with over 9 years of remarkable industry experience. We offer a spectacular range including the 500 RTS 17mtr JLG Scissor Lift, the 14mtr Scissor Lift, and the ES 3247 12mtr Mec Scissor, each representing the finest standards in safety and reliability. Our scissor lifts deliver astounding instant savings and performance enhancements when compared to ordinary access solutions. You benefit from unbeatable reach capabilities, user-friendly controls, enhanced operator safety, robust design for heavy-duty applications, and minimal maintenance needs-all features crafted to optimize your workflow. Whether you seek a premium deal on equipment for construction, maintenance, or industrial tasks, our scissor lifts are engineered for versatility and efficiency throughout All India. Experience the difference as we surpass competitors with superior supply ability, responsive customer support, and unwavering commitment to your operational success, ensuring our scissor lifts remain the preferred choice for businesses seeking the best in class solutions.

ES 3247 12mtr Mec Scissor

MOQ : 1 Unit

  • Capacity
  • 320 kg
  • Car Dimension
  • Platform: 2.26m x 1.12m
  • Control Device
  • Other, Proportional joystick control
  • Drive Type
  • Other, Hydraulic Drive
  • Inclination
  • Max 1.5
  • Load Capacity
  • 320 kg
  • Material
  • other Sheet, High tensile steel
  • Max. Lifting Height
  • 12 m
  • Max. Lifting Weight
  • 320 kg
  • Mechanism Type
  • Other, Hydraulic Scissor Mechanism
  • Noise Level
  • < 70 dB
  • Power Supply
  • Electric (Battery Operated)
  • Safety Device
  • Other, Emergency lowering device, Tilt sensor, Overload sensor
  • Speed
  • 3.5 km/h (Stowed), 0.8 km/h (Raised)
  • Type
  • Other, Self-propelled scissor lift
  • Usage
  • Other, Indoor/Outdoor elevated material handling and personnel lifting
  • Voltage
  • 24V DC
  • Working Temperature
  • -20C to +40C

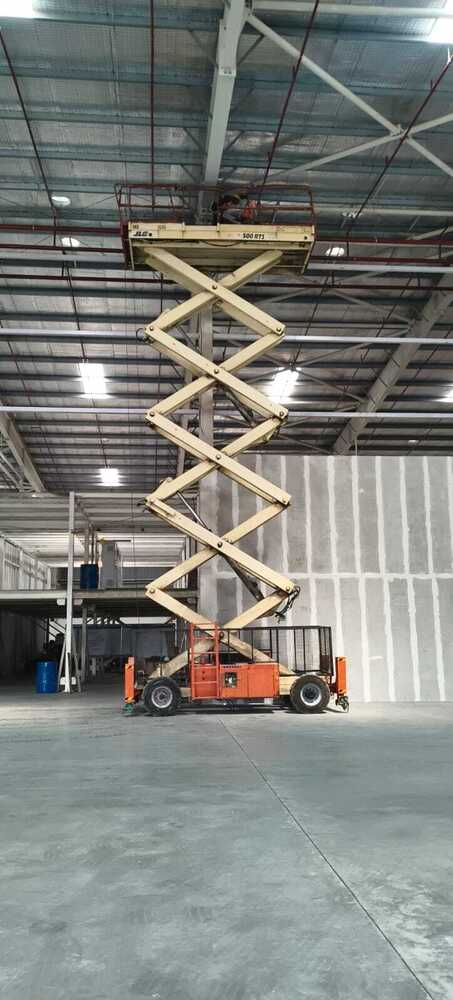

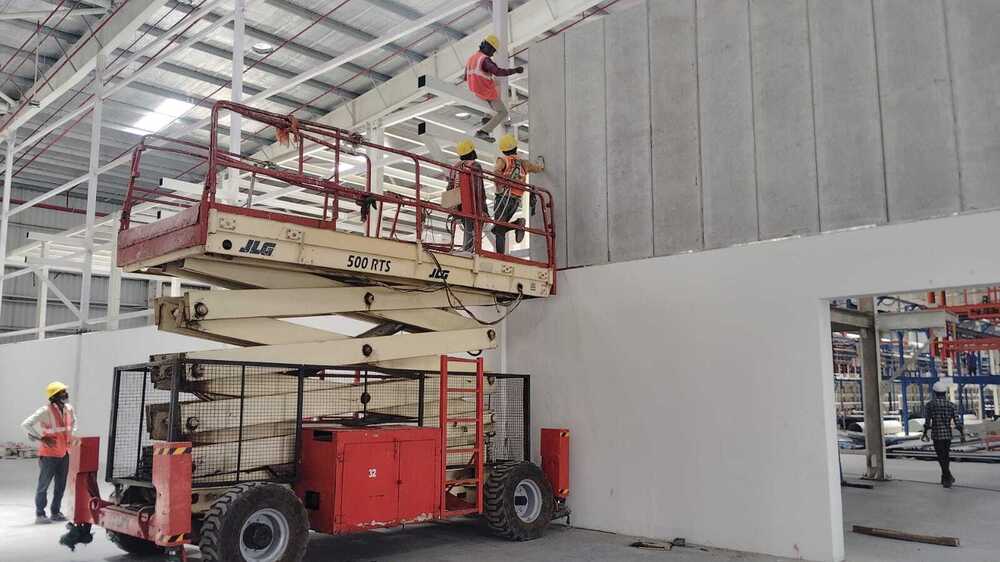

500 RTS 17mtr JLG Scissor Lift

MOQ : 1 Unit

  • Capacity
  • 2 persons / 500 kg
  • Car Dimension
  • Platform: 2.45 m x 1.15 m (approx.)
  • Control Device
  • Other, Proportional joystick control, both platform and ground
  • Door Opening Size
  • 0.6 m x 1.1 m (approx.)
  • Drive Type
  • Other, Hydraulic drive, 2WD
  • Inclination
  • Max 3
  • Load Capacity
  • 500 kg
  • Material
  • other Sheet, High-strength steel structure, powder coated finish
  • Max. Lifting Height
  • 17 meter
  • Max. Lifting Weight
  • 500 kg
  • Mechanism Type
  • Other, Hydraulic Scissor Mechanism
  • Noise Level
  • <70 dB
  • Overhead Height
  • 18.8 meter (guardrails up)
  • Power Supply
  • Electric / Battery Powered
  • Safety Device
  • Other, Emergency lowering system, tilt sensor, overload protection, safety interlocks
  • Speed
  • 0.8 - 3.2 km/h (Drive), 0.15 m/s (Lift)
  • Type
  • Other, Self-Propelled Scissor Lift
  • Usage
  • Other, Construction, maintenance, warehousing, installation
  • Voltage
  • 24V DC (Battery Operated)
  • Working Temperature
  • -20C ~ +40C

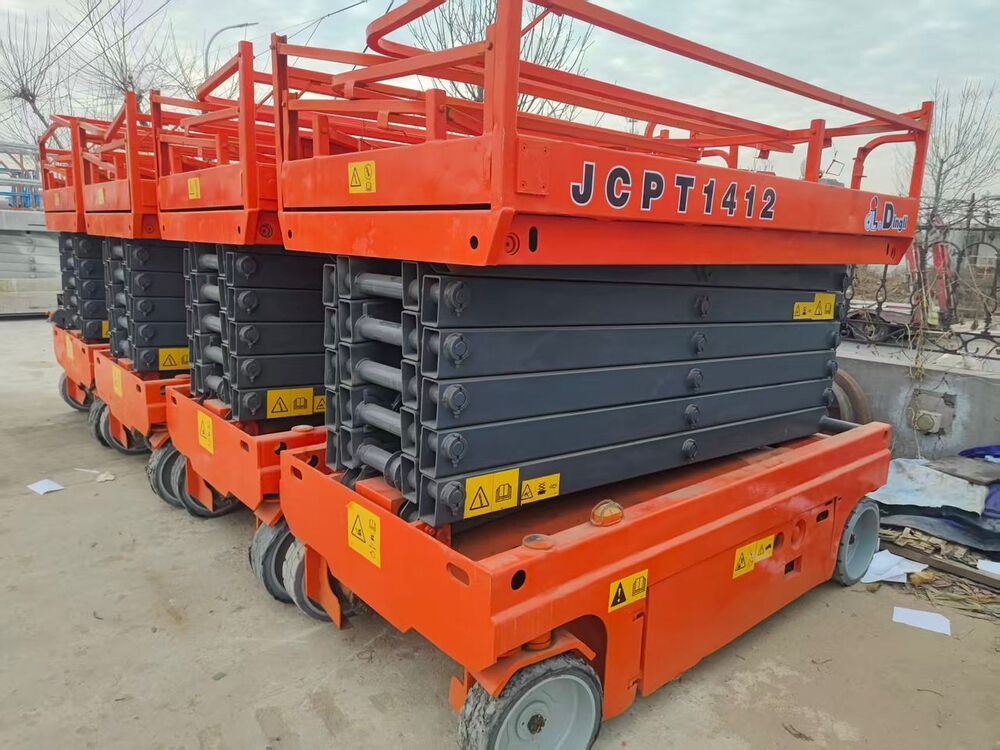

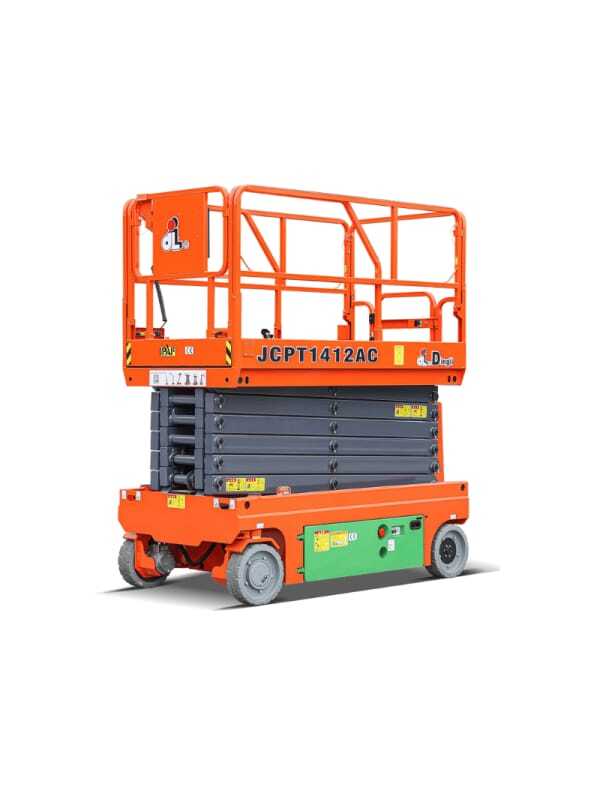

14mtr Scissor Lift

MOQ : 1 Unit

  • Capacity
  • 2-3 Persons
  • Car Dimension
  • 2.5 x 1.15 x 2.45 meters (LxWxH)
  • Control Device
  • Other, Both Platform and Ground Control
  • Drive Type
  • Other, Electric
  • Inclination
  • 3
  • Load Capacity
  • 320 kg
  • Material
  • other Sheet, High-Strength Steel
  • Max. Lifting Height
  • 14 meters
  • Max. Lifting Weight
  • 320 kg
  • Mechanism Type
  • Other, Hydraulic Scissor Mechanism
  • Noise Level
  • <70 dB
  • Power Supply
  • Battery/Electric
  • Safety Device
  • Other, Emergency Stop, Tilt Alarm, Overload Protection, Emergency Lowering System
  • Speed
  • 0.8-3 km/h
  • Type
  • Other, Self-Propelled Scissor Lift
  • Usage
  • Other, Indoor/Outdoor Maintenance, Warehousing, Installation
  • Voltage
  • 24V DC
  • Working Temperature
  • -10C to 40C
